Secret RF
Advanced Microneedle Radiofrequency Anti-Aging System
Minimally invasive microneedle radiofrequency system, engineered by precisely controlled RF energy that directly penetrates into various depths of skin to achieve skin lifting, tightening, and rejuvenation.
Overview
Secret RF uses precision 2MHz bi-polar RF and minimallv invasive micro-needles in one technology to produce a powerful synergistic effect minimizing damage on the epidermis.
Precisely controlled RF energy induces subdermal thermal effect and deep dermal thermal coagulation to selectively adjusted depth from 0.5mm to 3.5mm via patented non-insulated micro-needles. It is capable of greater heating and denaturing, which stimulates fibroblast of both subdermal and dermal lavers and remodels the skin effectivelv. Furthermore, it can treat all skin type, even darker skin with low risk of side effects and PIH.
Key Features

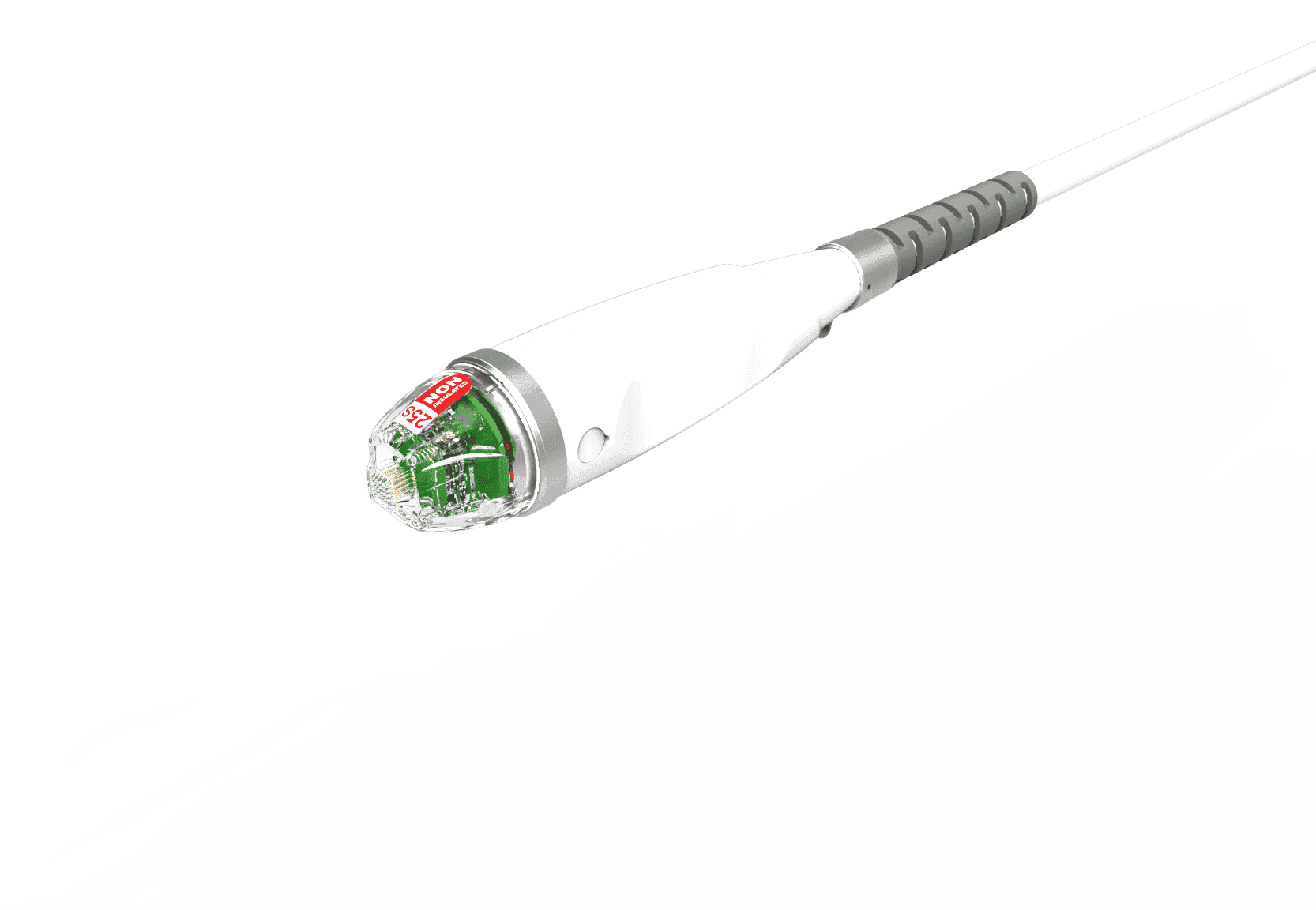

Dual Microneedles Handpieces
Two types of handpieces built for size adjustments and flexibility
Semi-Insulated Tips
Non and semi-insulated tips treating different indications for personalized treatments
Single Thermo-Coagulation Technology
Single thermo-coagulation technology engineered to provide satisfactory treatments on delicate, hard-to-reach areas
Specifications
| Intensity | 0–100 step (Microneedle: 10 step adjustable; Monopolar RF: 1 step adjustable) |
| Radio Frequency | 2 MHz ± 20% |
| Microneedle Max. Power | 25W (25pin cartridge) l 70W (64pin cartridge) |
| Monopolar RF Max. Power | 50W |
| Microneedle electrode | Single, 0.2s, 0.5s, 0.8s, 1s, 2s |
| Mono polar electrode | Continuous wave |
| Microneedle Needle Thickness | 0.25mm |
| Microneedle disposable needle tip | 25 electrode needles (5x5), standard | 64 electrode needles (8x8), optional |
| Microneedle treatment area | 1cm x 1cm l 1.5cm x 1.5cm |
| Microneedle adjustable depth | 0.5 ~ 3.5mm |
| Microneedle Treatment Duration | 50ms – 950ms |
| Monopolar Round electrode | Φ15 |
| Operating method | Foot switch |
| Display | 10.1" color capacitive touchscreen (1280*800) |
| Dimension | (W)180 x (D)460 x (H)1100mm |
| Weight | 30kgs |
| Rated Voltage | 100-240VAC, 50/60Hz, 220VA under |
